主要特点

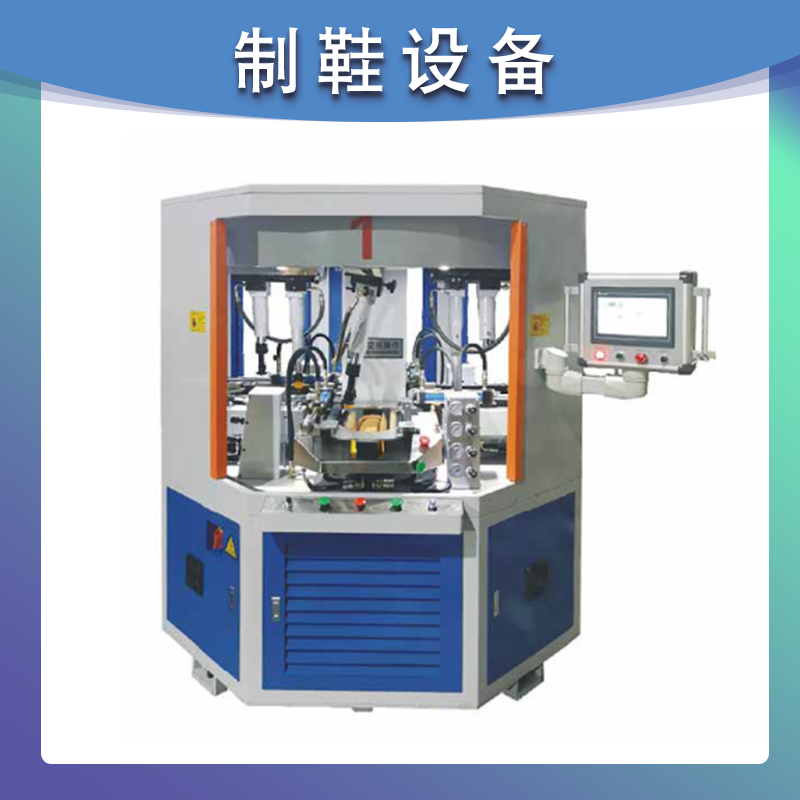

1.四站旋转式设计，可减少作业等待时间，提升产量。
2.具备快速定位功能，使机器能快速旋转至指定位置。
3.十组记忆功能，方便操作人员对各种大小鞋型设定后进行存档。4.电脑化 PLC 控制器搭配人机界面屏幕，采用双手启动，更加安全快捷。
5.直觉式人机界面设计，使操作人员方便掌握机器的状态及设定。
6.人机界面屏幕自动显示成型次数，可有效控制掌握制鞋产量。
7.具故障警报功能，使操作人员能立即发现问题并快速排出问题。8.上升油压缸使用预充阀补充油量，可使操作上升动作加速，节能操作时间。
9.前后束紧机构后退时，可控制其后退距离，更换鞋子大小简易。10.两支压杆可做偏摆动作，以利鞋楦之取放;免除旧式固定式压杆
操作不便之问题。11.两边各有 8-22 个橡胶发泡体压块每个压块均有独立之油压缸推动可随大小不同之鞋型做密实之墙边压着。
12.每个侧压压块有皆装置档销供选择用与不用，使鞋边之黏着达到最佳之效果。13.鞋头束紧压块有多种型式供选用，对各鞋种及尺码都能达到良好压着效果。
14.适用鞋子尺寸(含压底模):长 130-400mm/宽150mm 以下/高 200mm 以下/鞋边高 65-80mm.
15.采用全油压系统设计，适用于龙船底、墙式包底运动鞋及休闲鞋
的外底压着。
16.压底、压边及压前后可一次完成或个别完成。
17.两支压杆高低调整采用油压自动平衡结构,对于鞋楦之高低变化,长筒或半长简鞋均可调整，并确保两支压杆之压力平均，使鞋底之压着力量更均匀。
MAIN FEATURE
1.The four-station rotating design can reduce the operation waitingtime and boost production.
2.Equipped with quick -positioning function to rotate to the specifiedposition quickly.
3. Programmable and storable in memory for later retrieval of differentshoe patterns.
4. Computerized PLC control with touch screen interface, safer andfaster.
5.Inintuitive man-machine interface design, easier for operator.
6.Counter on touch screen shows number of shoe completed, easy for
management.
7. Error warnings on touch screen for quick repair to reduce down time.
8.Up-pressing cylinder with pre-charge valve to fasten upstrokemovement and reduce cycle time.
9. The two pressing rods can move sideways to load different size shoeseasily.
10.Adjustable backward stroke of the front and back pressing pad toeasily change between different shoe sizes.
11.There are 8-22 rubber blocks on each side with an independent oilcylinder that can be pressed on different pattern shoes.
12. Each side pressing pad is equipped with stop pin for choice, so thatthe edge of the shoe to achieve the best effect.
13. Various pattens of toe pad are availble for different types and sizes.
14. lt is suitable for shoe size (including pad ): lenght 130-400mm. Widthbelow 1500mm,height below 200mm and side wall height65-80mm.
15.Adopting hydraulic system design, and it is suitable for sports.casualshoes with flat or walled shoes pressing.
16.Sole pressing,edge pressing, toe and heel pressing can be
completed once or individually.
17.Auto-balancing system adopted for two pressing rods, and there isno need to adjust rod lenght for different shoe height.
