设备用途:

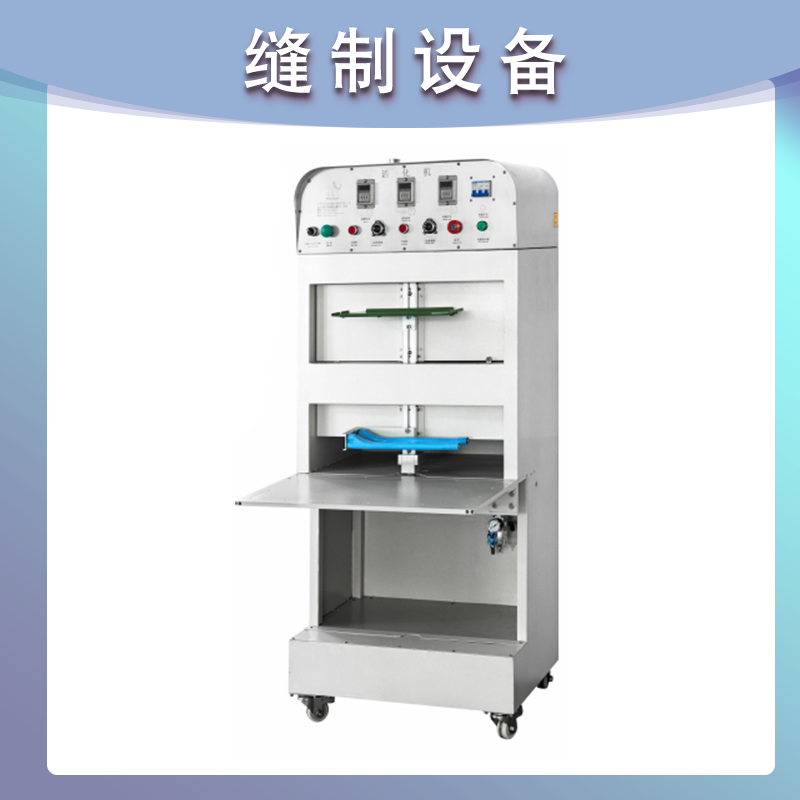

本机用于鞋面或鞋底的定性活化，杀菌，防霉。本机适用于各类鞋结帮后对帮面和大底涂胶，干燥活化，而后符合贴底工序，是精益生产的首选机型，也适用于板房开发。采用近红外线灯管照射，光波渗透鞋面及大底胶水层，快速烘干活化。上层采用铁氟托盘，下层采用可调式楦架，使鞋面，鞋底分屋对应，烘干活化，达到最佳贴合效果。

电力要求:380V(双层发热)

功率:5KW(双层)操作控制:计时控制

重量:90KG

机器尺寸:850*700*1700mm包装尺寸:920*720*1830mm

Feature:

Device Purpose:

This machine is used for the shaping, activation, sterilization,and mildew prevention of shoe uppers or soles.This machine is suitable for applying glue to the upper andthe outsole after the shoe is lasted, drying and activating theglue, and then proceeding with the sole attaching process. ltis the preferred model for lean production and is alsosuitable for the development work in the sample room.It uses near-infrared lamps for irradiation. The light wavespenetrate the shoe upper and the glue layer of the outsole,achieving rapid drying and activation. The upper layer isequipped with a Teflon tray, and the lower layer is equippedwith an adjustable last frame, enabling the shoe upper andthe sole to be aligned in layers for drying and activation,thus achieving the best fitting effect.

Power Requirement:380V(double-layer heating)

Power: 5kW (double-layer)

Operation Controk: Timing controlWeight:9okG

Machine Dimensions: 850*700*1700mmPackaging Dimensions:920*720*1830mm
